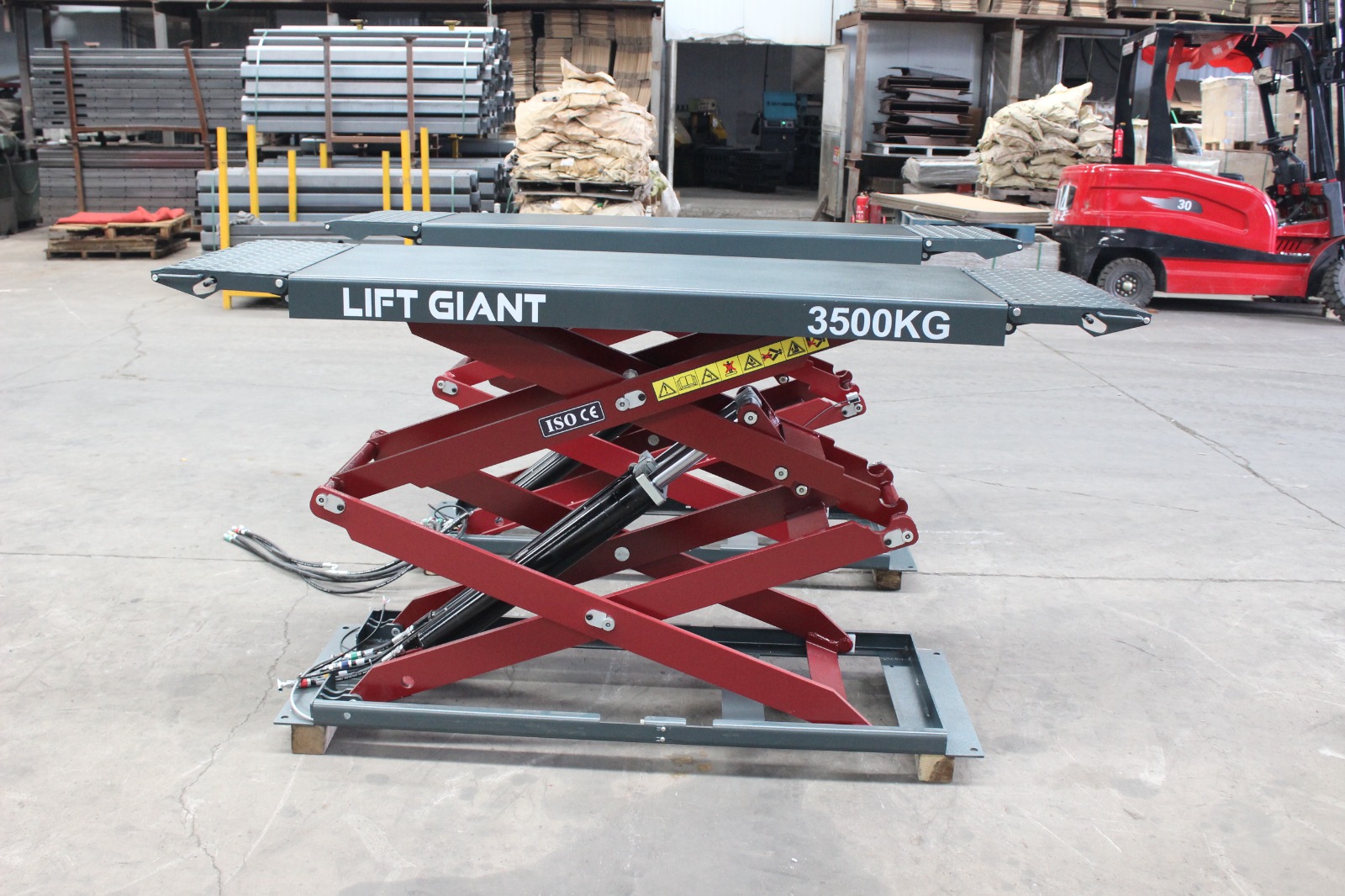

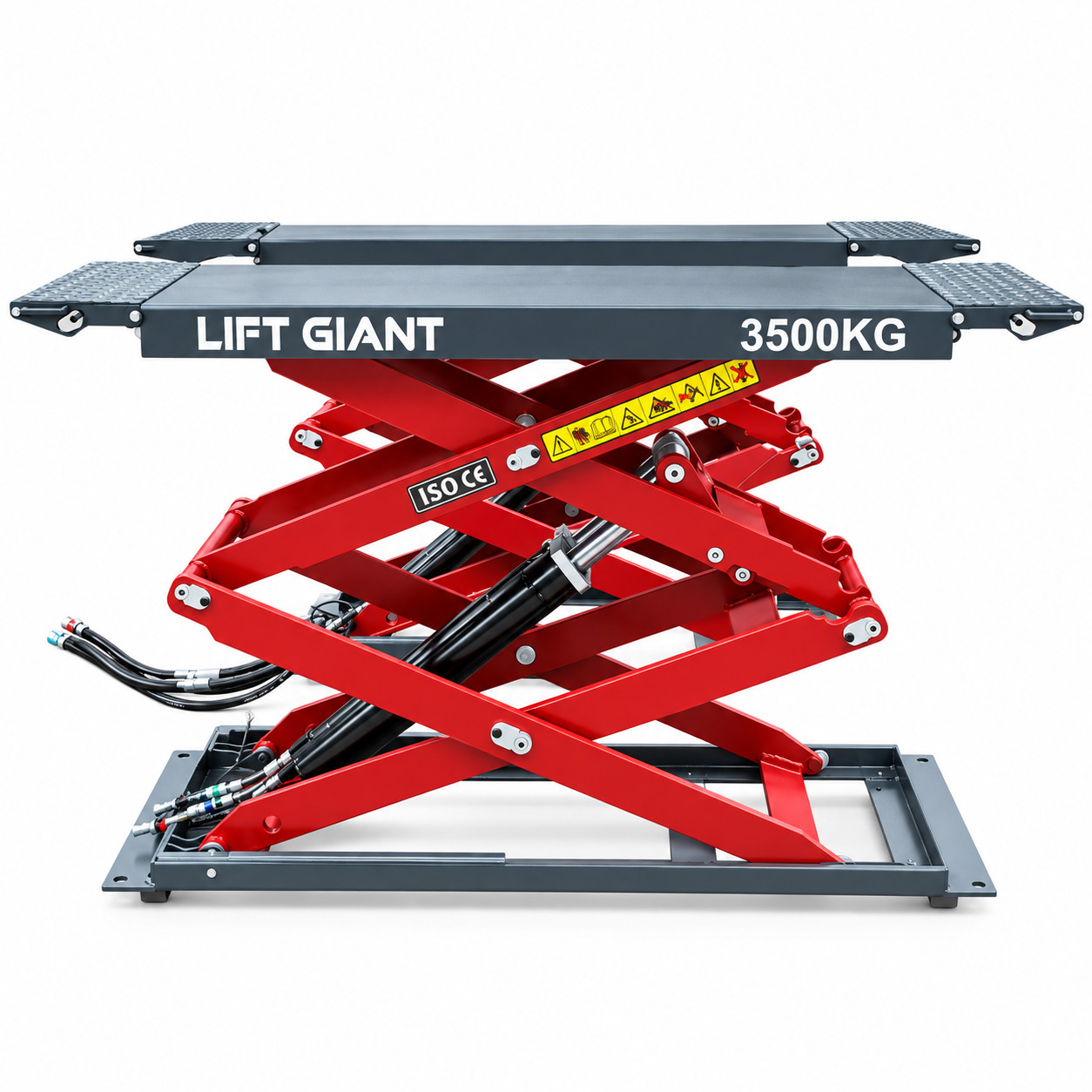

LGX40 Fulll Rise Double Scissor Lift for Workshops

Single Phase 240v
3500kg Capacity
1800mm Lifting Height
110m Closed Profile.
24v Electro Mechanical Locks. No compressed air line required.
Grey and Red two tone finish.

The LGX40 is a new lift suitable for panel repairs, changing tyres and working under the vehicle. Raise vehicles to full standing height safely and securely with this car scissor lift.

£2,590.00 inc. VAT

Request a Quote

LGX40 Fulll Rise Double Scissor Lift for Workshops

£2,590.00 inc. VAT

ex. VAT £2,590.00

Single Phase 240v
3500kg Capacity
1800mm Lifting Height
110m Closed Profile.
24v Electro Mechanical Locks. No compressed air line required.
Grey and Red two tone finish.

The LGX40 is a new lift suitable for panel repairs, changing tyres and working under the vehicle. Raise vehicles to full standing height safely and securely with this car scissor lift.

Product Details

How Does the LGX40 Full Rise Scissor Lift Work?

The LGX40 Full Rise Scissor Lift uses a 240V hydraulic power unit to operate two cylinders within each platform. The lift raises a vehicle from ground level up to a maximum height of approximately 1,800mm, providing full standing-height access underneath the vehicle. With a 3,500kg lifting capac...
Read more
ity, the LGX40 is suitable for a wide range of cars and light commercial vehicles. Unlike some scissor lifts, there is no cross-stay running between the platforms, helping to provide clear access to the underside of the vehicle for servicing, maintenance and repair work. The LGX40 is designed to be bolted securely to the floor and is therefore intended as a fixed workshop lift rather than a portable or mobile scissor lift. Get an installed price for the LGX40.

What Makes the Lift Giant LGX40 Different?

The LGX40 has been designed to combine full-rise access, straightforward operation and excellent value for both professional workshops and private garages.

Assisted Fulcrum Lifting: The assisted fulcrum design gives the scissor mechanism additional leverage during the initial lift. This allows the hydraulic cylinders to begin extending before taking the full vehicle load.

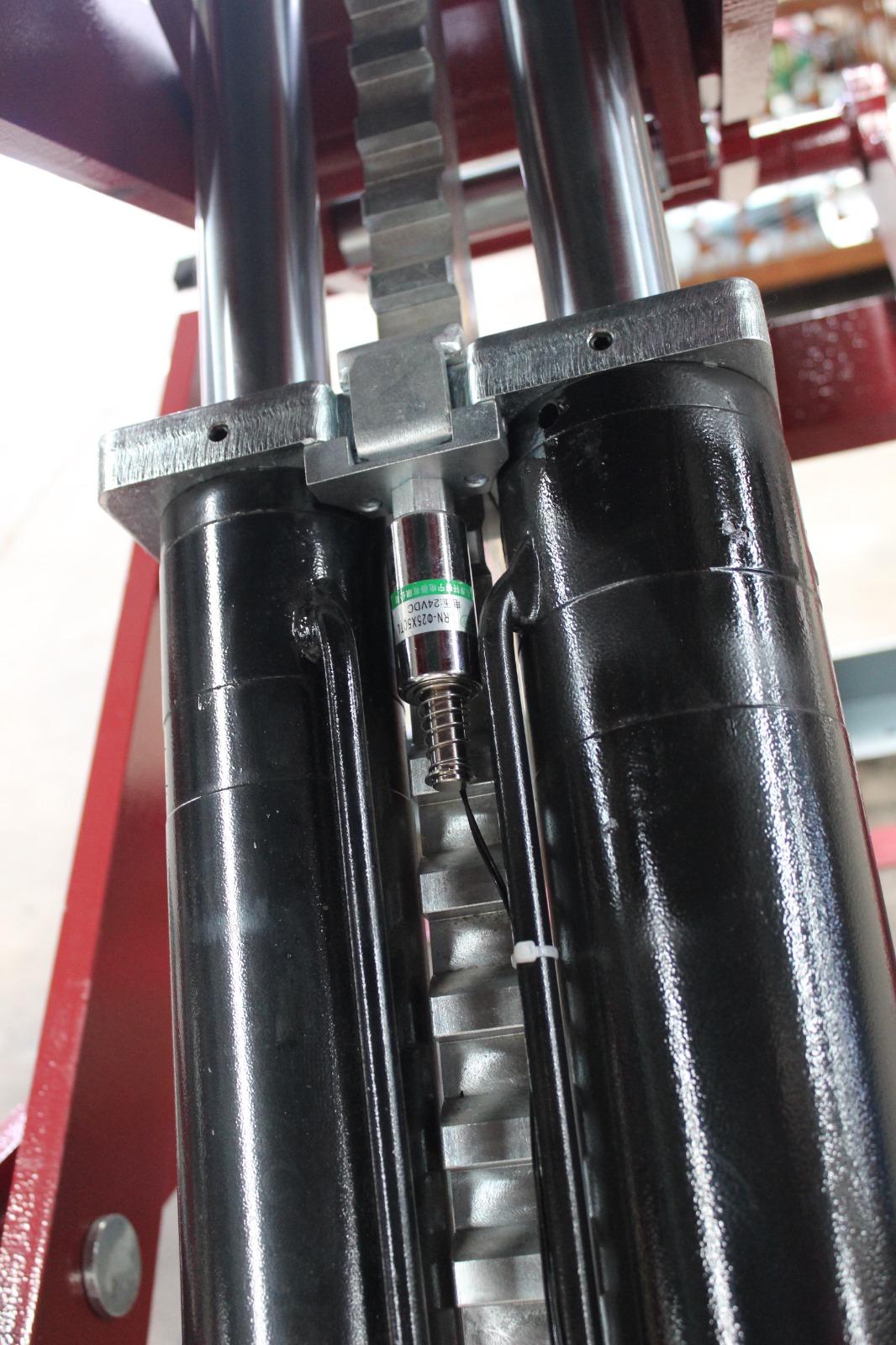

No Compressed Air Required: The LGX40 features simple push-button operation and does not require a compressed air supply. The electro-mechanical locking system uses a sprung mechanical latch with a 24V lock-release solenoid, which automatically disengages when lowering the lift.
Locking Extension Ramps: The approach ramps can be locked into the horizontal position to extend the usable platform length, helping the lift accommodate longer-wheelbase vehicles.

LGX40 Key Features

3,500kg lifting capacity
Full-rise lifting height of approximately 1,800mm
Standing-height access underneath the vehicle
Suitable for private garages and commercial workshops
Assisted fulcrum lifting system
Locking extension ramps for longer-wheelbase vehicles
No compressed air supply required
Designed to be securely bolted to the floor
Minimum 150mm concrete thickness required
240V single-phase power supply
16A plug with C or D rated motor fuse required

LGX40 Declaration of Conformity

For additional peace of mind, the LGX40 scissor vehicle lift is compliant with the UK Supply of Machinery (Safety) Regulations 2008 and Machinery Directive 2006/42/EC. Each lift is supplied with a Declaration of Conformity confirming that it meets the relevant UK and EU harmonised safety standards. You can download the LGX40 Declaration of Conformity here

Specifications

Lifting Capacity	3500KG
Fuse Protection Required	16C or 16D
Motor Power	2.2kw 50hz 240v single phase
Concrete requirement	150mm
Unit Weight	950kg
Lifting Height	1800mm
Platform Length	1520mm extending to 2060mm
Platform Width	600mm
Total Width	2030mm
